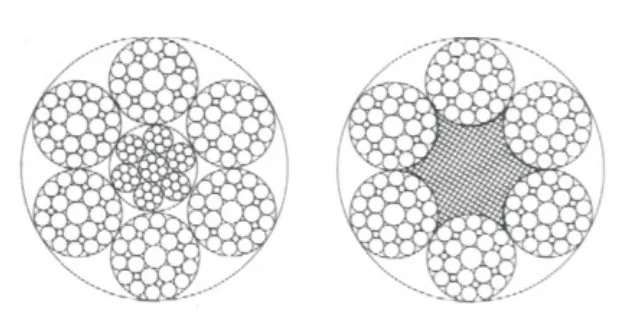

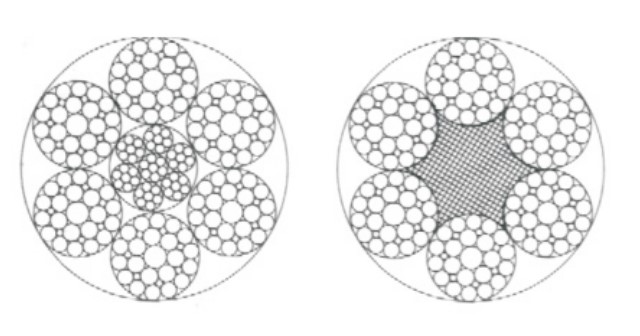

Construction: | |
---|---|
Surface: | |
Availability: | |
Quantity: | |
ZS07
Gostern Rigging
ZS0701
Nominal Dia. (mm) |
Reference Weight (kg/100m) |
Nominal Tensile Strength (Mpa) | |||||||||||||
1570 | 1670 | 1770 | 1870 | 1960 | 2160 | ||||||||||
Min Breaking Force (kN) | |||||||||||||||
Natural Fiber Core | Synthetic Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | |
16 | 97.3 | 95 | 107 | 133 | 143 | 141 | 152 | 150 | 161 | 158 | 170 | 166 | 179 | 182 | 197 |
18 | 123 | 120 | 135 | 168 | 181 | 179 | 193 | 189 | 204 | 200 | 216 | 210 | 226 | 231 | 249 |
20 | 152 | 148 | 167 | 207 | 224 | 220 | 238 | 234 | 252 | 247 | 266 | 259 | 279 | 285 | 308 |
22 | 184 | 180 | 202 | 251 | 271 | 267 | 288 | 283 | 305 | 299 | 322 | 313 | 338 | 345 | 372 |
24 | 219 | 214 | 241 | 298 | 322 | 317 | 342 | 336 | 363 | 355 | 383 | 373 | 402 | 411 | 443 |
26 | 257 | 251 | 283 | 350 | 378 | 373 | 402 | 395 | 426 | 417 | 450 | 437 | 472 | 482 | 520 |
28 | 298 | 291 | 328 | 406 | 438 | 432 | 466 | 458 | 494 | 484 | 522 | 507 | 547 | 559 | 603 |
30 | 342 | 334 | 376 | 466 | 503 | 496 | 535 | 526 | 567 | 555 | 599 | 582 | 628 | 642 | 692 |
32 | 289 | 380 | 428 | 531 | 572 | 564 | 609 | 598 | 645 | 632 | 682 | 662 | 715 | 730 | 787 |
34 | 439 | 429 | 483 | 599 | 646 | 637 | 687 | 675 | 728 | 713 | 770 | 748 | 807 | 824 | 889 |
36 | 492 | 481 | 542 | 671 | 724 | 714 | 770 | 757 | 817 | 800 | 863 | 838 | 904 | 924 | 997 |
38 | 549 | 536 | 604 | 748 | 807 | 796 | 858 | 843 | 910 | 891 | 961 | 934 | 1010 | 1030 | 1110 |
40 | 608 | 594 | 669 | 829 | 894 | 882 | 951 | 935 | 1010 | 987 | 1070 | 1030 | 1120 | 1140 | 1230 |
42 | 670 | 654 | 737 | 914 | 986 | 972 | 1050 | 1030 | 1110 | 1090 | 1170 | 1140 | 1230 | 1260 | 1360 |
44 | 736 | 718 | 809 | 1000 | 1080 | 1070 | 1150 | 1130 | 1220 | 1190 | 1290 | 1250 | 1350 | 1380 | 1490 |
46 | 804 | 785 | 884 | 1100 | 1180 | 1170 | 1260 | 1240 | 1330 | 1310 | 1410 | 1370 | 1480 | 1510 | 1630 |
48 | 876 | 855 | 963 | 1190 | 1290 | 1270 | 1370 | 1350 | 1450 | 1420 | 1530 | 1490 | 1610 | 1640 | 1770 |
50 | 950 | 928 | 1040 | 1300 | 1400 | 1380 | 1490 | 1460 | 1580 | 1540 | 1660 | 1620 | 1740 | 1780 | 1920 |
52 | 1030 | 1000 | 1130 | 1400 | 1510 | 1490 | 1610 | 1580 | 1700 | 1670 | 1800 | 1750 | 1890 | 1930 | 2080 |
54 | 1110 | 1080 | 1220 | 1510 | 1630 | 1610 | 1730 | 1700 | 1840 | 1800 | 1940 | 1890 | 2030 | 2080 | 2240 |
56 | 1190 | 1160 | 1310 | 1620 | 1750 | 1730 | 1860 | 1830 | 1980 | 1940 | 2090 | 2030 | 2190 | 2240 | 2410 |
58 | 1280 | 1250 | 1410 | 1740 | 1800 | 1850 | 2000 | 1960 | 2120 | 2080 | 2240 | 2180 | 2350 | 2400 | 2590 |
60 | 1370 | 1340 | 1500 | 1870 | 2010 | 1980 | 2140 | 2100 | 2270 | 2220 | 2400 | 2330 | 2510 | 2570 | 2770 |
62 | 1470 | - | 1610 | 1990 | 2150 | 2120 | 2290 | 2250 | 2420 | 2370 | 2560 | 2490 | 2680 | - | - |
64 | 1570 | - | 1710 | 2120 | 2290 | 2260 | 2440 | 2390 | 2580 | 2530 | 2730 | 2650 | 2860 | - | - |
66 | 1670 | - | 1820 | 2260 | 2430 | 2460 | 2590 | 2540 | 2740 | 2690 | 2900 | 2820 | 3040 | - | - |
68 | 1770 | - | 1930 | 2400 | 2580 | 2550 | 2750 | 2700 | 2910 | 2850 | 3080 | 2990 | 3230 | - | - |
70 | 1880 | - | 2050 | 2540 | 2740 | 2700 | 2910 | 2860 | 3090 | 3020 | 3260 | 3170 | 3420 | - | - |
72 | 1990 | - | 2170 | 2690 | 2900 | 2860 | 3080 | 3030 | 3270 | 3200 | 3450 | 3350 | 3620 | - | - |
74 | 2100 | - | 2290 | 2840 | 3060 | 3020 | 3260 | 3200 | 3450 | 3380 | 3650 | 3540 | 3820 | - | - |
76 | 2210 | - | 2410 | 2990 | 3230 | 3180 | 3430 | 3370 | 3640 | 3560 | 3850 | 3740 | 4030 | - | - |
78 | 2330 | - | 2540 | 3150 | 3400 | 3350 | 3620 | 3550 | 3830 | 3750 | 4050 | 3940 | 4250 | - | - |
80 | 2450 | - | 2680 | 3320 | 3580 | 3530 | 3800 | 3740 | 4030 | 3950 | 4260 | 4140 | 4470 | - | - |
82 | 2580 | - | 2810 | 3480 | 3760 | 3710 | 4000 | 3930 | 4240 | 4150 | 4480 | 4350 | 4690 | - | - |
84 | 2700 | - | 2950 | 3660 | 3940 | 3890 | 4190 | 4120 | 4450 | 4350 | 4700 | 4560 | 4920 | - | - |
86 | 2830 | - | 3090 | 3830 | 4130 | 4080 | 4400 | 4320 | 4660 | 4560 | 4920 | 4780 | 5160 | - | - |
88 | 2970 | - | 3240 | 4010 | 4330 | 4270 | 4600 | 4520 | 4880 | 4780 | 5160 | 5010 | 5400 | - | - |
90 | 3100 | - | 3390 | 4200 | 4530 | 4460 | 4820 | 4730 | 5100 | 5000 | 5390 | 5240 | 5650 | - | - |
92 | 3240 | - | 3540 | 4390 | 4730 | 4660 | 5030 | 4940 | 5330 | 5220 | 5630 | 5470 | 5910 | - | - |
94 | 3380 | - | 3690 | 4580 | 4940 | 4870 | 5250 | 5160 | 5570 | 5450 | 5890 | 5720 | 6170 | - | - |
96 | 3530 | - | 3850 | 4770 | 5150 | 5080 | 5480 | 5380 | 5810 | 5690 | 6140 | 5960 | 6430 | - | - |
98 | 3680 | - | 4010 | 4980 | 5370 | 5290 | 5710 | 5160 | 6050 | 5930 | 6390 | 6200 | 6700 | - | - |
100 | 3830 | - | 4180 | 5180 | 5590 | 5510 | 5950 | 5840 | 6300 | 6170 | 6660 | 6470 | 6980 | - | - |
*Note: Min wire breaking force sum = min wire rope breaking force x 1.226(fiber core) or 1.321(steel core), among them 6x37S fiber core is 1.191, steel core is 1.283.
Nominal Dia. (mm) |
Reference Weight (kg/100m) |
Nominal Tensile Strength (Mpa) | |||||||||||||
1570 | 1670 | 1770 | 1870 | 1960 | 2160 | ||||||||||
Min Breaking Force (kN) | |||||||||||||||
Natural Fiber Core | Synthetic Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | |
16 | 97.3 | 95 | 107 | 133 | 143 | 141 | 152 | 150 | 161 | 158 | 170 | 166 | 179 | 182 | 197 |
18 | 123 | 120 | 135 | 168 | 181 | 179 | 193 | 189 | 204 | 200 | 216 | 210 | 226 | 231 | 249 |
20 | 152 | 148 | 167 | 207 | 224 | 220 | 238 | 234 | 252 | 247 | 266 | 259 | 279 | 285 | 308 |
22 | 184 | 180 | 202 | 251 | 271 | 267 | 288 | 283 | 305 | 299 | 322 | 313 | 338 | 345 | 372 |
24 | 219 | 214 | 241 | 298 | 322 | 317 | 342 | 336 | 363 | 355 | 383 | 373 | 402 | 411 | 443 |
26 | 257 | 251 | 283 | 350 | 378 | 373 | 402 | 395 | 426 | 417 | 450 | 437 | 472 | 482 | 520 |
28 | 298 | 291 | 328 | 406 | 438 | 432 | 466 | 458 | 494 | 484 | 522 | 507 | 547 | 559 | 603 |
30 | 342 | 334 | 376 | 466 | 503 | 496 | 535 | 526 | 567 | 555 | 599 | 582 | 628 | 642 | 692 |
32 | 289 | 380 | 428 | 531 | 572 | 564 | 609 | 598 | 645 | 632 | 682 | 662 | 715 | 730 | 787 |
34 | 439 | 429 | 483 | 599 | 646 | 637 | 687 | 675 | 728 | 713 | 770 | 748 | 807 | 824 | 889 |
36 | 492 | 481 | 542 | 671 | 724 | 714 | 770 | 757 | 817 | 800 | 863 | 838 | 904 | 924 | 997 |
38 | 549 | 536 | 604 | 748 | 807 | 796 | 858 | 843 | 910 | 891 | 961 | 934 | 1010 | 1030 | 1110 |
40 | 608 | 594 | 669 | 829 | 894 | 882 | 951 | 935 | 1010 | 987 | 1070 | 1030 | 1120 | 1140 | 1230 |
42 | 670 | 654 | 737 | 914 | 986 | 972 | 1050 | 1030 | 1110 | 1090 | 1170 | 1140 | 1230 | 1260 | 1360 |
44 | 736 | 718 | 809 | 1000 | 1080 | 1070 | 1150 | 1130 | 1220 | 1190 | 1290 | 1250 | 1350 | 1380 | 1490 |
46 | 804 | 785 | 884 | 1100 | 1180 | 1170 | 1260 | 1240 | 1330 | 1310 | 1410 | 1370 | 1480 | 1510 | 1630 |
48 | 876 | 855 | 963 | 1190 | 1290 | 1270 | 1370 | 1350 | 1450 | 1420 | 1530 | 1490 | 1610 | 1640 | 1770 |
50 | 950 | 928 | 1040 | 1300 | 1400 | 1380 | 1490 | 1460 | 1580 | 1540 | 1660 | 1620 | 1740 | 1780 | 1920 |
52 | 1030 | 1000 | 1130 | 1400 | 1510 | 1490 | 1610 | 1580 | 1700 | 1670 | 1800 | 1750 | 1890 | 1930 | 2080 |
54 | 1110 | 1080 | 1220 | 1510 | 1630 | 1610 | 1730 | 1700 | 1840 | 1800 | 1940 | 1890 | 2030 | 2080 | 2240 |
56 | 1190 | 1160 | 1310 | 1620 | 1750 | 1730 | 1860 | 1830 | 1980 | 1940 | 2090 | 2030 | 2190 | 2240 | 2410 |
58 | 1280 | 1250 | 1410 | 1740 | 1800 | 1850 | 2000 | 1960 | 2120 | 2080 | 2240 | 2180 | 2350 | 2400 | 2590 |
60 | 1370 | 1340 | 1500 | 1870 | 2010 | 1980 | 2140 | 2100 | 2270 | 2220 | 2400 | 2330 | 2510 | 2570 | 2770 |
62 | 1470 | - | 1610 | 1990 | 2150 | 2120 | 2290 | 2250 | 2420 | 2370 | 2560 | 2490 | 2680 | - | - |
64 | 1570 | - | 1710 | 2120 | 2290 | 2260 | 2440 | 2390 | 2580 | 2530 | 2730 | 2650 | 2860 | - | - |
66 | 1670 | - | 1820 | 2260 | 2430 | 2460 | 2590 | 2540 | 2740 | 2690 | 2900 | 2820 | 3040 | - | - |
68 | 1770 | - | 1930 | 2400 | 2580 | 2550 | 2750 | 2700 | 2910 | 2850 | 3080 | 2990 | 3230 | - | - |
70 | 1880 | - | 2050 | 2540 | 2740 | 2700 | 2910 | 2860 | 3090 | 3020 | 3260 | 3170 | 3420 | - | - |
72 | 1990 | - | 2170 | 2690 | 2900 | 2860 | 3080 | 3030 | 3270 | 3200 | 3450 | 3350 | 3620 | - | - |
74 | 2100 | - | 2290 | 2840 | 3060 | 3020 | 3260 | 3200 | 3450 | 3380 | 3650 | 3540 | 3820 | - | - |
76 | 2210 | - | 2410 | 2990 | 3230 | 3180 | 3430 | 3370 | 3640 | 3560 | 3850 | 3740 | 4030 | - | - |
78 | 2330 | - | 2540 | 3150 | 3400 | 3350 | 3620 | 3550 | 3830 | 3750 | 4050 | 3940 | 4250 | - | - |
80 | 2450 | - | 2680 | 3320 | 3580 | 3530 | 3800 | 3740 | 4030 | 3950 | 4260 | 4140 | 4470 | - | - |
82 | 2580 | - | 2810 | 3480 | 3760 | 3710 | 4000 | 3930 | 4240 | 4150 | 4480 | 4350 | 4690 | - | - |
84 | 2700 | - | 2950 | 3660 | 3940 | 3890 | 4190 | 4120 | 4450 | 4350 | 4700 | 4560 | 4920 | - | - |
86 | 2830 | - | 3090 | 3830 | 4130 | 4080 | 4400 | 4320 | 4660 | 4560 | 4920 | 4780 | 5160 | - | - |
88 | 2970 | - | 3240 | 4010 | 4330 | 4270 | 4600 | 4520 | 4880 | 4780 | 5160 | 5010 | 5400 | - | - |
90 | 3100 | - | 3390 | 4200 | 4530 | 4460 | 4820 | 4730 | 5100 | 5000 | 5390 | 5240 | 5650 | - | - |
92 | 3240 | - | 3540 | 4390 | 4730 | 4660 | 5030 | 4940 | 5330 | 5220 | 5630 | 5470 | 5910 | - | - |
94 | 3380 | - | 3690 | 4580 | 4940 | 4870 | 5250 | 5160 | 5570 | 5450 | 5890 | 5720 | 6170 | - | - |
96 | 3530 | - | 3850 | 4770 | 5150 | 5080 | 5480 | 5380 | 5810 | 5690 | 6140 | 5960 | 6430 | - | - |
98 | 3680 | - | 4010 | 4980 | 5370 | 5290 | 5710 | 5160 | 6050 | 5930 | 6390 | 6200 | 6700 | - | - |
100 | 3830 | - | 4180 | 5180 | 5590 | 5510 | 5950 | 5840 | 6300 | 6170 | 6660 | 6470 | 6980 | - | - |
*Note: Min wire breaking force sum = min wire rope breaking force x 1.226(fiber core) or 1.321(steel core), among them 6x37S fiber core is 1.191, steel core is 1.283.
