6x37S+FC 6x37S+IWR Wire Rope Round Strand Steel Cable Rope

Construction:
Surface:
Availability:
Quantity:
  • ZS07

  • Gostern Rigging

  • ZS0701

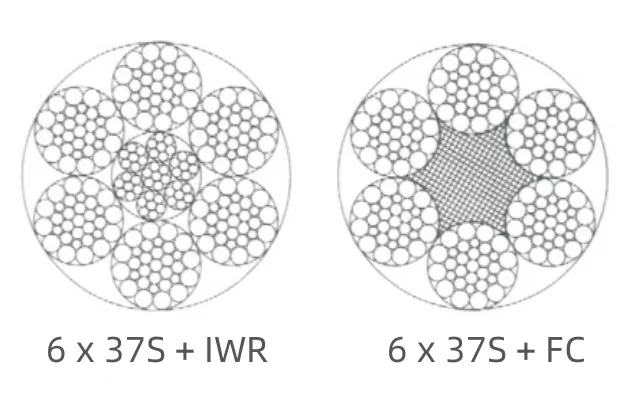

6x37S wire rope小图

Nominal Dia.
(mm)
Reference Weight
(kg/100m)
Nominal Tensile Strength (Mpa)
1570 1670 1770 1870 1960 2160
Min Breaking Force (kN)
Natural Fiber Core Synthetic Fiber Core Steel Core Fiber Core Steel Core Fiber Core Steel Core Fiber Core Steel Core Fiber Core Steel Core Fiber Core Steel Core Fiber Core Steel Core
16 97.3 95 107 133 143 141 152 150 161 158 170 166 179 182 197
18 123 120 135 168 181 179 193 189 204 200 216 210 226 231 249
20 152 148 167 207 224 220 238 234 252 247 266 259 279 285 308
22 184 180 202 251 271 267 288 283 305 299 322 313 338 345 372
24 219 214 241 298 322 317 342 336 363 355 383 373 402 411 443
26 257 251 283 350 378 373 402 395 426 417 450 437 472 482 520
28 298 291 328 406 438 432 466 458 494 484 522 507 547 559 603
30 342 334 376 466 503 496 535 526 567 555 599 582 628 642 692
32 289 380 428 531 572 564 609 598 645 632 682 662 715 730 787
34 439 429 483 599 646 637 687 675 728 713 770 748 807 824 889
36 492 481 542 671 724 714 770 757 817 800 863 838 904 924 997
38 549 536 604 748 807 796 858 843 910 891 961 934 1010 1030 1110
40 608 594 669 829 894 882 951 935 1010 987 1070 1030 1120 1140 1230
42 670 654 737 914 986 972 1050 1030 1110 1090 1170 1140 1230 1260 1360
44 736 718 809 1000 1080 1070 1150 1130 1220 1190 1290 1250 1350 1380 1490
46 804 785 884 1100 1180 1170 1260 1240 1330 1310 1410 1370 1480 1510 1630
48 876 855 963 1190 1290 1270 1370 1350 1450 1420 1530 1490 1610 1640 1770
50 950 928 1040 1300 1400 1380 1490 1460 1580 1540 1660 1620 1740 1780 1920
52 1030 1000 1130 1400 1510 1490 1610 1580 1700 1670 1800 1750 1890 1930 2080
54 1110 1080 1220 1510 1630 1610 1730 1700 1840 1800 1940 1890 2030 2080 2240
56 1190 1160 1310 1620 1750 1730 1860 1830 1980 1940 2090 2030 2190 2240 2410
58 1280 1250 1410 1740 1800 1850 2000 1960 2120 2080 2240 2180 2350 2400 2590
60 1370 1340 1500 1870 2010 1980 2140 2100 2270 2220 2400 2330 2510 2570 2770
62 1470 1610 1990 2150 2120 2290 2250 2420 2370 2560 2490 2680
64 1570 1710 2120 2290 2260 2440 2390 2580 2530 2730 2650 2860
66 1670 1820 2260 2430 2460 2590 2540 2740 2690 2900 2820 3040
68 1770 1930 2400 2580 2550 2750 2700 2910 2850 3080 2990 3230
70 1880 2050 2540 2740 2700 2910 2860 3090 3020 3260 3170 3420
72 1990 2170 2690 2900 2860 3080 3030 3270 3200 3450 3350 3620
74 2100 2290 2840 3060 3020 3260 3200 3450 3380 3650 3540 3820
76 2210 2410 2990 3230 3180 3430 3370 3640 3560 3850 3740 4030
78 2330 2540 3150 3400 3350 3620 3550 3830 3750 4050 3940 4250
80 2450 2680 3320 3580 3530 3800 3740 4030 3950 4260 4140 4470
82 2580 2810 3480 3760 3710 4000 3930 4240 4150 4480 4350 4690
84 2700 2950 3660 3940 3890 4190 4120 4450 4350 4700 4560 4920
86 2830 3090 3830 4130 4080 4400 4320 4660 4560 4920 4780 5160
88 2970 3240 4010 4330 4270 4600 4520 4880 4780 5160 5010 5400
90 3100 3390 4200 4530 4460 4820 4730 5100 5000 5390 5240 5650
92 3240 3540 4390 4730 4660 5030 4940 5330 5220 5630 5470 5910
94 3380 3690 4580 4940 4870 5250 5160 5570 5450 5890 5720 6170
96 3530 3850 4770 5150 5080 5480 5380 5810 5690 6140 5960 6430
98 3680 4010 4980 5370 5290 5710 5160 6050 5930 6390 6200 6700
100 3830 4180 5180 5590 5510 5950 5840 6300 6170 6660 6470 6980

*Note: Min wire breaking force sum = min wire rope breaking force x 1.226(fiber core) or 1.321(steel core), among them 6x37S fiber core is 1.191, steel core is 1.283.
