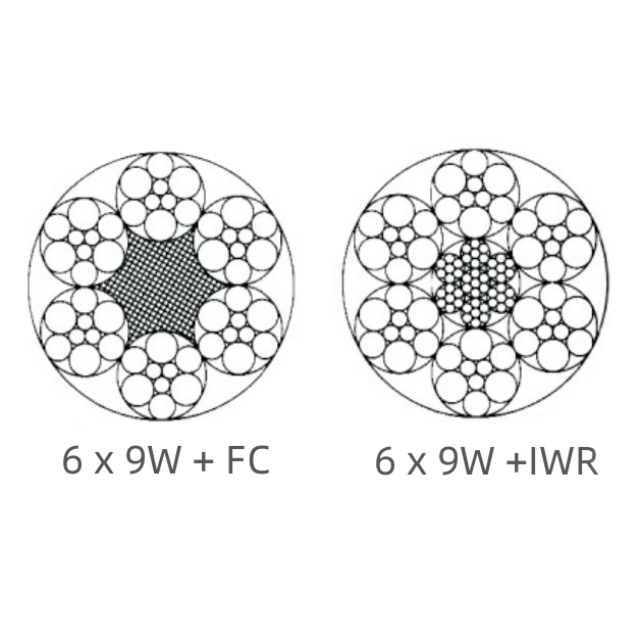

6x9W+FC 6X9W+IWR Round Strand Steel Wire Rope

Construction:
Surface:
Availability:
Quantity:
  • ZS07

  • Gostern Rigging

  • ZS0701

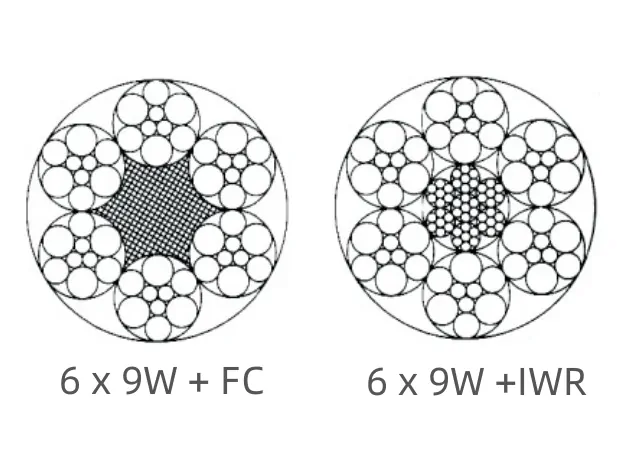

6x9w结构图小图

Nominal

Dia.

(mm)
Reference Weight
(kg/100m)
Nominal Tensile Strength (Mpa)
1570 1670 1770 1870
Min Breaking Force (kN)

Natural

Fiber Core

Synthetic

Fiber Core

Steel
Core
Fiber
Core
Steel
Core
Fiber
Core
Steel
Core
Fiber
Core
Steel
Core
Fiber
Core
Steel
Core
1.8 1.14 1.11 1.25 1.69 1.83 1.8 1.94 1.9 2.06 2.01 2.18
2 1.4 1.38 1.55 2.08 2.25 2.22 2.4 2.35 2.54 2.48 2.69
3 3.16 3.1 3.48 4.69 5.07 4.99 5.4 5.29 5.72 5.59 6.04
4 5.62 5.5 6.19 8.34 9.02 8.77 9.59 9.4 10.2 9.93 10.7
5 8.78 8.6 9.68 13 14.1 13.9 15 14.7 15.9 15.5 16.8
6 12.6 12.4 13.9 18.8 20.3 20 21.6 21.2 22.9 22.4 24.2
7 17.2 16.9 19 25.5 27.6 27.2 29.4 28.8 31.1 30.4 32.9
8 22.5 22 24.8 33.4 36.1 35.5 38.4 37.6 40.7 39.7 43
9 28.4 27.9 31.3 42.2 45.7 44.9 48.6 47.6 51.5 50.3 54.4
10 35.1 34.4 38.7 52.1 56.4 55.4 60 58.8 63.5 62.1 67.1
11 42.5 41.6 46.8 63.1 68.2 67.1 72.5 71.1 76.9 75.1 81.2
12 50.5 49.5 55.7 75.1 81.2 79.8 86.3 84.6 91.5 89.4 96.7
13 59.3 58.1 65.4 88.1 95.3 93.7 101 99.3 107 105 113
14 68.8 67.4 75.9 102 110 109 118 115 125 122 132
16 89.9 88.1 99.1 133 144 142 153 150 163 159 172
18 114 111 125 169 183 180 194 190 206 201 218
20 140 138 155 208 225 222 240 235 254 248 269
22 170 166 187 252 273 268 290 284 308 300 325
24 202 198 223 300 325 319 345 338 366 358 387
26 237 233 262 352 381 375 405 397 430 420 454
28 275 270 303 409 442 435 470 461 498 487 526
30 316 310 348 469 507 499 540 529 572 559 604
32 359 352 396 534 577 568 614 602 651 636 687
34 406 398 447 603 652 641 693 679 735 718 776
36 455 446 502 676 730 719 777 762 824 805 870


*Note: Min wire breaking force sum = min wire rope breaking force x 1.134 (fiber core) or 1.214 (steel core).
