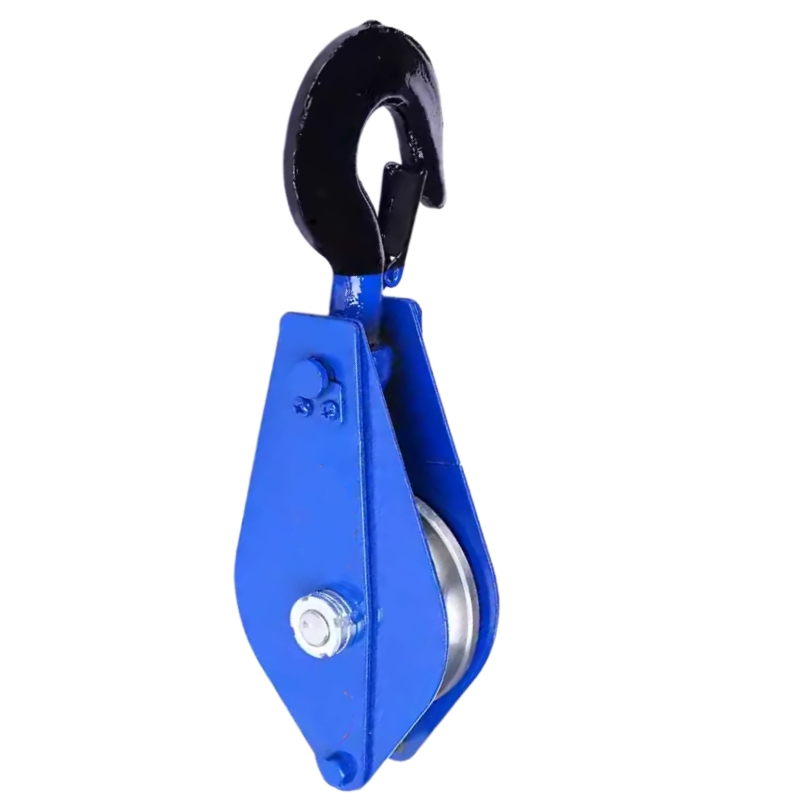

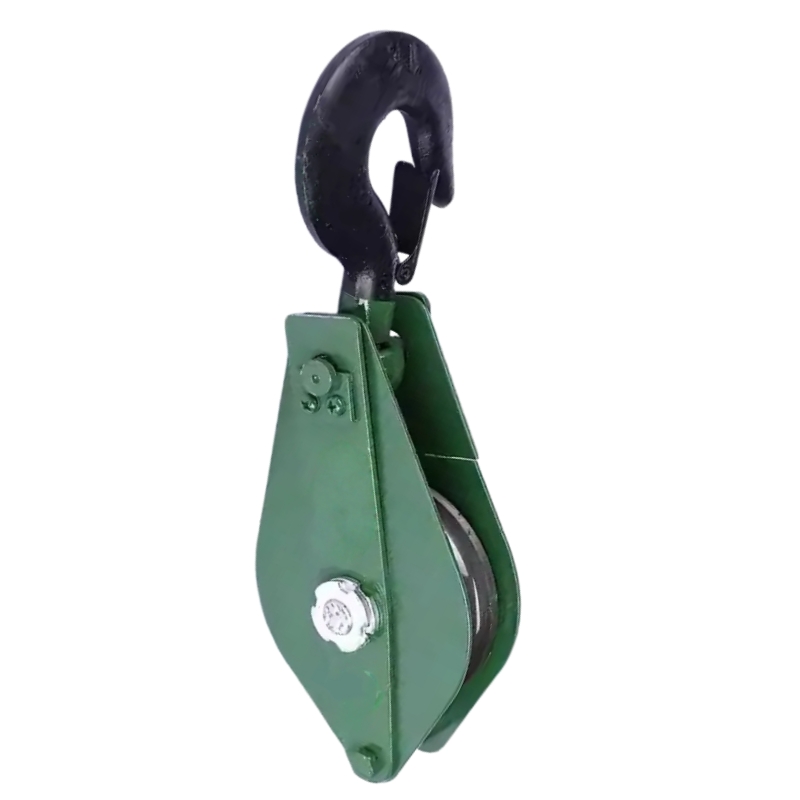

Snatch Block with Hook for Wire Ropes

The Snatch Block with Hook is a professional-grade rigging tool engineered to redirect loads, increase mechanical advantage, and create efficient pulley systems.

W.L.L:	0.5T 1T 2T 3T 5T 8T 10T 16T 20T
Availability:

Quantity:



Inquire Add to Basket

Model:
ZS121014
Brand:
Gostern Rigging
Code:
ZS12101401

Product Description

Heavy Duty Snatch Block with Hook – Professional Wire Rope Pulley for Lifting & Rigging

The snatch block is manufactured from high-quality steel. This heavy-duty pulley block ensures maximum strength and durability in the most demanding environments. Its unique hinged design features a quick-opening side plate secured with a bolt and safety pin, allowing easy insertion of wire rope without time-consuming reeving—even while the block is suspended. Whether you are on a construction site, performing vehicle recovery, or handling industrial rigging, this snatch block delivers reliable performance and safety.

Quick-Open Feature: Remove the hairpin pin and swing open the side plate for instant rope insertion.

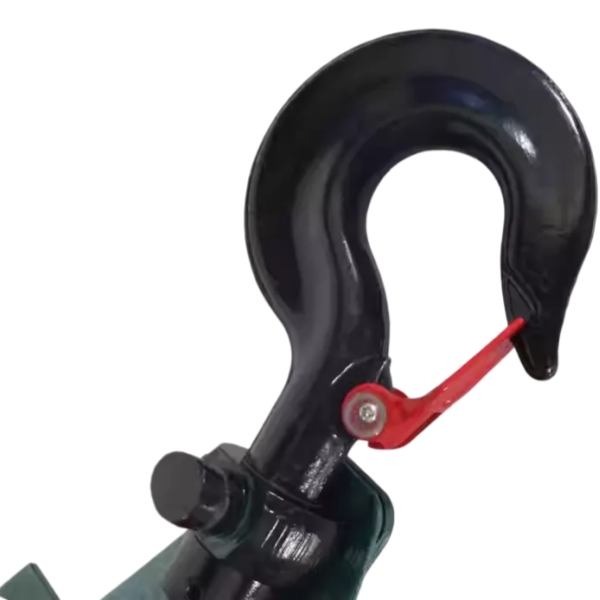

钢丝绳单轮带钩滑车细节图2

360° Rotating Swivel Hook: The forged hook with a safety latch swivels 360°, automatically aligning with the load to prevent rope twisting and binding.

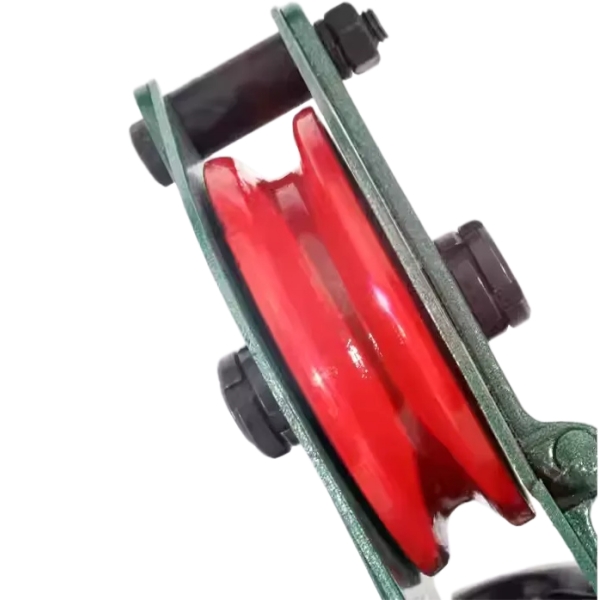

钢丝绳单轮带钩滑车细节图1

Optimized Sheave Groove: Precision-machined sheave grooves accommodate a range of wire rope diameters, ensuring secure seating and reducing slippage.

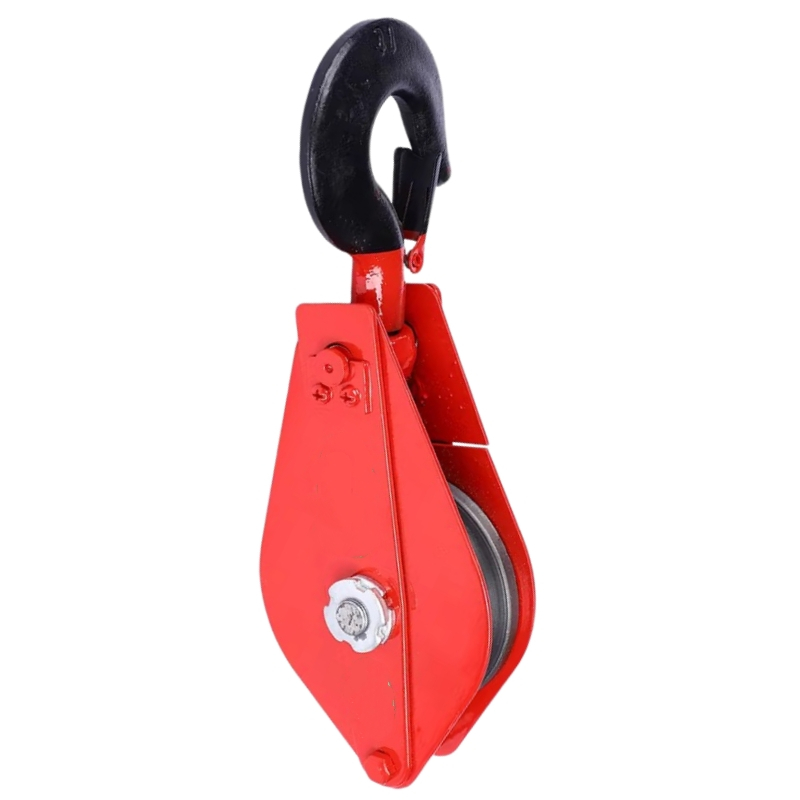

钢丝绳单轮带钩滑车3

Techinical Parameters Table
W.L.L (ton)	Wire Rope Dia. (mm)	Sheave Root Dia. (mm)	Approx Weight (kg)
0.5	6.2-7.7	70	1.5
1	7.7-11	80	3
2	11-14	110	5.5
3.2	12.5-15.5	130	9
5	15.5-18.5	160	18
8	20-23	210	35
10	23-24.5	240	47
16	28-31	315	113
20	31-35	355	160

Applications (Where to use it)

This versatile snatch block is essential for a wide range of tasks :

1. Lifting & Rigging: Redirecting overhead crane lines or hoists.

2. Off-Road Recovery: Creating a mechanical advantage (doubling line pull) for winching out stuck vehicles.

3. Towing: Smoothing out cable angles on wreckers and rollbacks.

4. Construction: Handling steel beams or heavy materials on-site.

5. Marine: Sailboat rigging or dockside pulling.

6. Utility: Stringing power lines or cable pulling.

Installation & Maintenance Guide

Installation:

Open: Remove the safety pin and loosen the quick-release bolt to swing the side plate open.
Insert: Place the wire rope directly into the groove of the sheave.
Close: Swing the side plate back into position and secure it tightly with the bolt and pin. Ensure the lock is fully engaged before applying load.
Attach: Secure the hook to a stable anchor point. Ensure the safety latch is closed.

Maintenance:

Inspect: Before each use, inspect for cracks, wear, deformation, or corrosion. Never exceed WLL.
Lubrication: Lubricate regularly via the grease fittings to ensure smooth rotation of the bearings/bushings and extend their service life.
