Glavanized Forged US Type Jaw & Eye Turnbuckles

Forged US-type turnbuckles are used to tighten wire ropes and adjust tightness. The OO type is used for occasions that are not frequently disassembled, the CC type is used for frequent disassembly, and the CO type is used for occasions where one end is often disassembled and the other end is not frequently disassembled.
Availability:
Quantity:
Inquire Add to Basket

  • ZS1207

  • Gostern Rigging

  • ZS120701

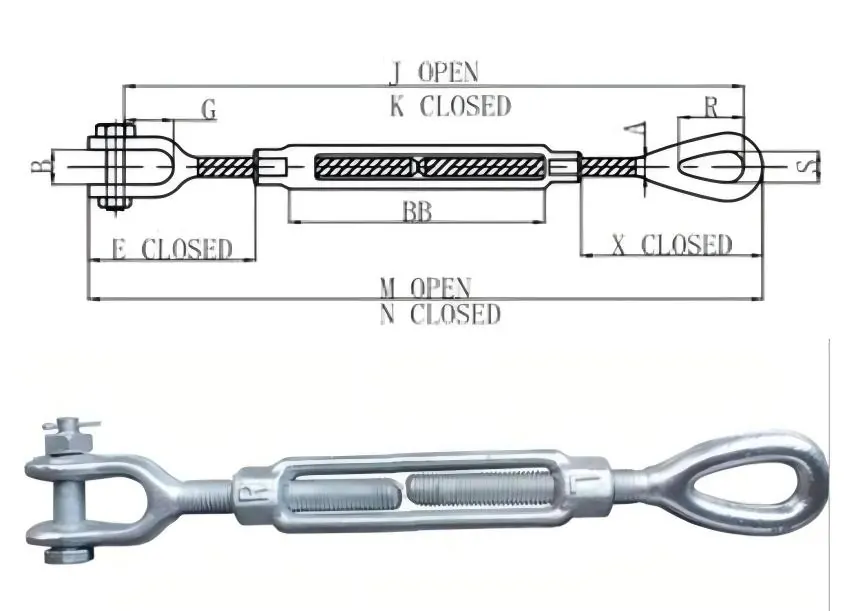

Jaw-Eye Turnbuckle

OU型花兰_00(1)

Model WLL Weight Dimension(inch)
inch lbs kg A D E
Closed		 G J
Open		 K
Closed		 M
Open		 N
Closed		 R S X
Closed		 BB
1/4 x 4 500 0.15 0.25 0.41 1.58 0.62 11.35 7.35 12.07 8.07 0.78 0.34 1.75 4
5/16 x 4-1/2 800 0.24 0.31 0.47 1.98 0.87 13.71 8.71 14.01 9.51 0.94 0.44 2.09 4.5
3/8 x 6 1,200 0.36 0.38 0.5 2.12 0.87 16.81 10.81 17.77 11.77 1.12 0.53 2.52 6
1/2 x 6 2,200 0.8 0.5 0.63 2.75 1.06 18.29 12.28 19.48 13.48 1.44 0.72 3.23 6
1/2 x 9 2,200 1.02 0.5 0.63 2.75 1.06 24.29 15.29 15.48 16.48 1.44 0.72 3.23 9
1/2 x 12 3,500 1.21 0.5 0.63 2.75 1.06 30.29 18.29 31.48 19.48 1.44 0.72 3.23 12
5/8 x 6 3,500 1.35 0.63 0.75 3.5 1.31 19.74 13.74 21.28 15.28 1.75 0.88 3.9 6
5/8 x 9 3,500 1.69 0.63 0.75 3.5 1.31 25.74 16.74 27.28 18.28 1.75 0.88 3.9 9
5/8 x 12 3,500 1.97 0.63 0.75 3.5 1.31 31.74 19.74 33.28 21.28 1.75 0.88 3.9 12
3/4 x 6 5,200 2.05 0.75 0.94 4.18 1.5 21.19 15.19 23.11 17.11 2.09 1 4.69 6
3/4 x 9 5,200 2.52 0.75 0.94 4.18 1.5 27.19 18.19 29.11 20.11 2.09 1 4.69 9
3/4 x 12 5,200 2.91 0.75 0.94 4.18 1.5 33.19 21.19 35.11 23.11 2.09 1 4.69 12
3/4 x 18 5,200 3.69 0.75 0.94 4.18 1.5 45.19 27.19 47.11 29.11 2.09 1 4.69 18
7/8 x 12 7,200 4.13 0.88 1.13 4.85 1.75 34.34 33.34 36.57 24.57 2.38 1.25 5.1 12
7/8 x 18 7,200 5.28 0.88 1.13 4.85 1.75 46.34 28.34 48.57 30.57 2.38 1.25 5.1 18
1 x 6 10,000 4.55 1 1.19 5.53 2.06 24.34 18.34 26.89 20.89 3 1.44 6.36 6
1 x 12 10,000 6.06 1 1.19 5.53 2.06 36.34 24.34 38.89 26.89 3 1.44 6.36 12
1 x 18 10,000 7.58 1 1.19 5.53 2.06 48.34 30.34 50.89 32.89 3 1.44 6.36 18
1 x 24 10,000 9.33 1 1.19 5.53 2.06 60.34 36.34 62.89 38.89 3 1.44 6.36 24
1-1/4 x 12 15,200 9.48 1.25 1.75 7.21 2.81 38.82 26.82 42.05 30.05 3.56 1.81 7.72 12
1-1/4 x 18 15,200 11.3 1.25 1.75 7.21 2.81 50.82 32.82 54.05 36.05 3.56 1.81 7.72 18
1-1/4 x 24 15,200 13.1 1.25 1.75 7.21 2.81 62.82 38.82 66.05 42.05 3.56 1.81 7.72 24
1-1/2 x 12 21,400 13.9 1.5 2.06 7.88 2.81 40.5 28.5 44.25 32.25 4.06 2.12 8.62 12
1-1/2 x 18 21,400 16.3 1.5 2.06 7.88 2.81 52.5 34.5 56.25 38.25 4.06 2.12 8.62 18
1-1/2 x 24 21,400 18.8 1.5 2.06 7.88 2.81 64.5 40.5 68.25 44.25 4.06 2.12 8.62 24
1-3/4 x 18 28,000 23.6 1.75 2.38 9.4 3.38 55.38 37.38 59.78 41.78 4.62 2.38 10 18
1-3/4 x 24 28,000 27.1 1.75 2.38 9.4 3.38 67.38 43.38 71.78 47.78 4.62 2.38 10 24
2 x 24 37,000 40.8 2 2.5 11.86 3.69 72.62 48.62 77.95 53.95 5.75 2.69 13.09 24
2-1/2 x 24 60,000 71.7 2.5 2.88 13.56 4.44 75.8 51.8 82.4 58.4 6.5 3.12 13.78 24
2-3/4 x 24 75,000 84.6 2.75 3.5 15.22 4.19 77.88 53.88 85.5 61.5 7 3.25 15.22 24
